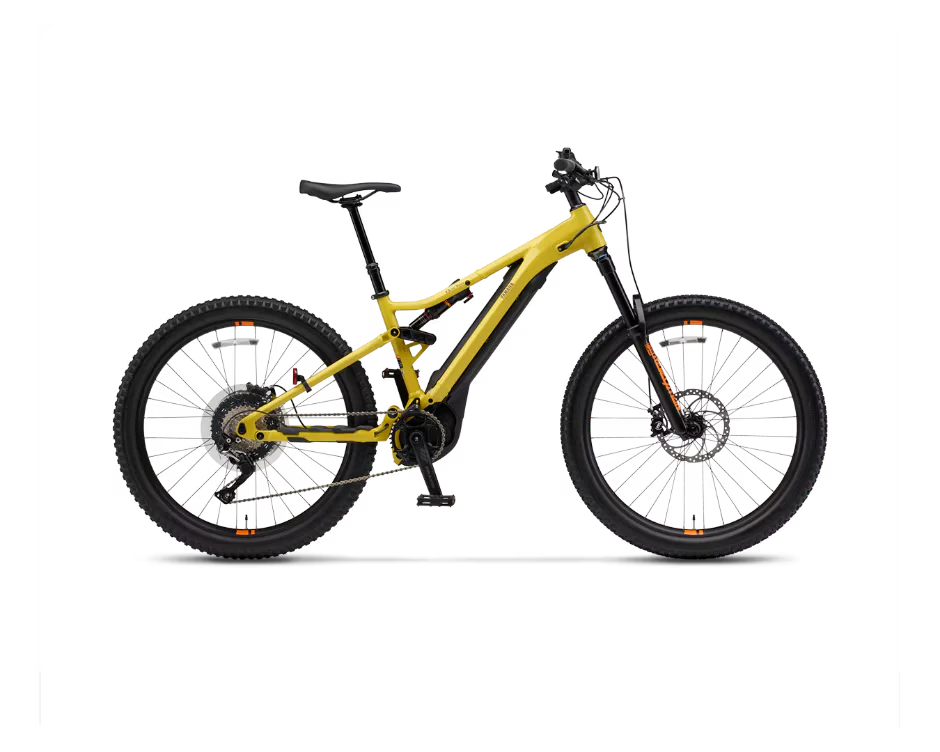

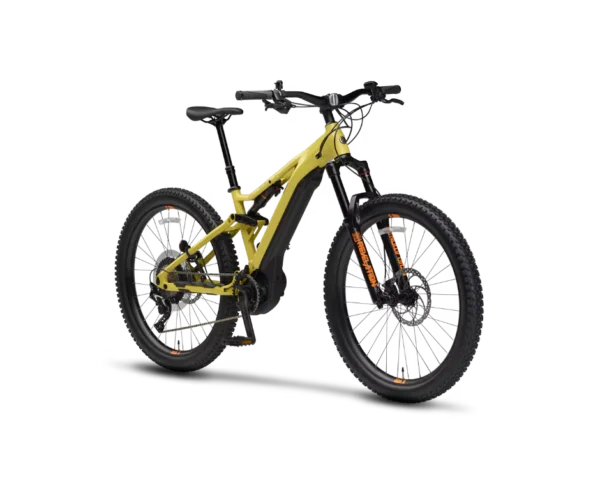

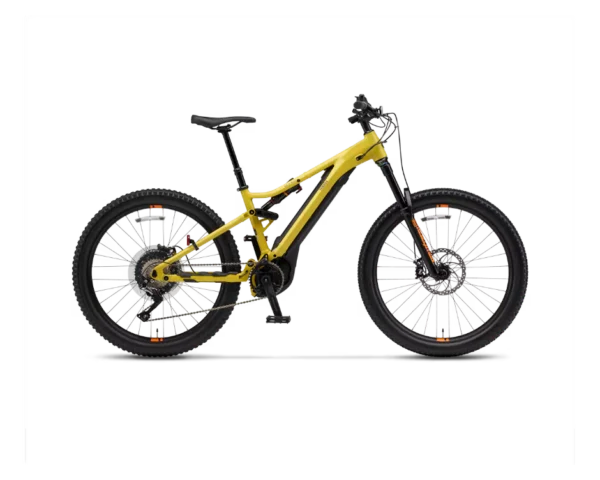

Yamaha YDX-MORO E-BIke
Key Information
BATTERY
Yamaha 500Wh with Charge-life indicator and Self-diagnosis display
Anti-Vibration Mounting Plate
Weight: 6.61 lbs
500Wh 36V
Re-charge time: 1-hour 80%, 4-hour 100%
Weight
51.3lb (M)
MOTOR
YAMAHA PW-X3 Class 1 Labeled
Centermount
ISIS Splined Crankarm Spindle
YAMAHA Quad Sensor with Automatic Support and Walk Assist Modes
Rate power: 250W (nominal), 500W (maximum)
Max torque: 85Nm
Max speed support: 20MPH
Support Modes: ECO, Standard, High, MTB, Extra-Power, Automatic, Walk Assist
CONTROL SWITCH AND COMPUTER
YAMAHA Interface X Control functions include: 3-color LED support-mode level light indicator, (5) Support-mode control switch, plus AUTOMATIC support mode (Aqua LED indicator) and Walk Assist mode (Purple LED indicator), Bluetooth™ connectivity, 3-color LED support-mode level light indicator, LED brightness adjustability, battery capacity (4-LED capacity indicators)
FRAME
YAMAHA Dual Twin Frame
Tapered Headtube
Internal cable/housing routing
2-bolt drive unit mount
12×148 rear axle spacing
Integrated YAMAHA speed sensor harness
FORK
RockShox Revelation RC Boost 160mm
Tapered aluminum steerer, 1 1/8in – 1 1/2in
REAR SHOCK
ROCKSHOX SUPER DELUXE SELECT +
Custom tuned for YAMAHA YDX-MORO 07
150mm travel
210X55mm DebonAir+ air spring with 15 clicks of rebound adjustment, 2-position compression adjustment
HEADSET
Integrated tapered headset with headset spacers
STEM
Yamaha Alloy 4-bolt faceplate35.0 diameter40mm length
HANDLEBAR
Alloy 30mm riser bar
35.0mm diameter
780mm width
GRIPS
Locking Dual Core
SEATPOST/SADDLE CLAMP
Alloy 30.9mm dropper post (S/M) 125mm travel, (L) 150mm travel
SEATPOST COLLER
Single-bolt 35.0mm
SADDLE
YAMAHA anti-slip finish with hand rail tail
SHIFTERS
Shimano SLX11-speed
DERAILLEURS
Front: N/A
Rear: SHIMANO SLX Long-Cage
CRANKARM
PRAXIS ISIS
170mm
CHAIN
KMC e11 Turbo
CASSETTE
Shimano SLX
11-speed
11/46T
CHAINRINGS
Praxis Wave 36T 104 BCD
BRAKeS/ROTORS
Magura MT30 Front: 4-piston Rear: 2-piston
203mm Storm CL Rotors
RIMS
Yamaha 27.5+ Alloy
Tubeless tape installed
Width: 46mm (OUTSIDE) 40mm (INSIDE)
SPOKES
Spokes SUS304
Spoke Nipples
Brass
HUBS
Anodized
Centerlock brake mount
Front hub 15 x 110 Boost, rear hub 12 x 148 Hyperglide freehub and Yamaha Bicycles Speed Sensor
TIRES/TUBE
Rear: CST Patrol 27.5 x 2.8in Front: CST BFT 27.5 x 2.8in
Tubeless compatible rim
Tubeless compatible rim strip
ACCESSORIES
Bell
(No keys)
